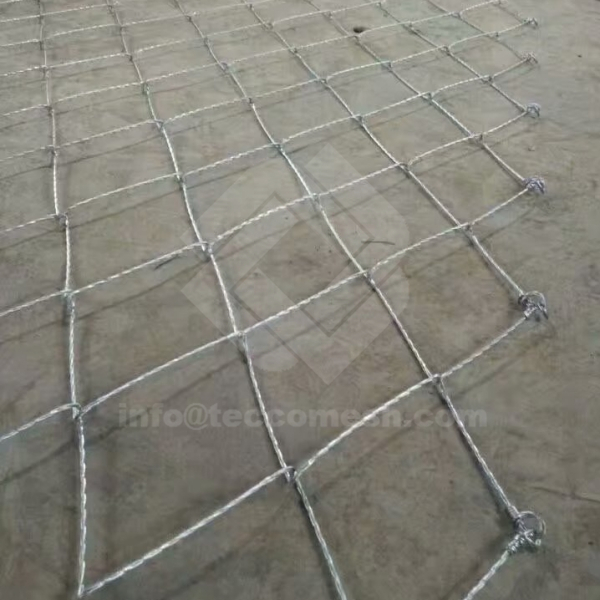

Spider Spiral Rope Mesh

  • Spider Spiral Rope Mesh
  • Spider Slope Stabilization System
  • Система укрепления склонов SPIDER

Product Description

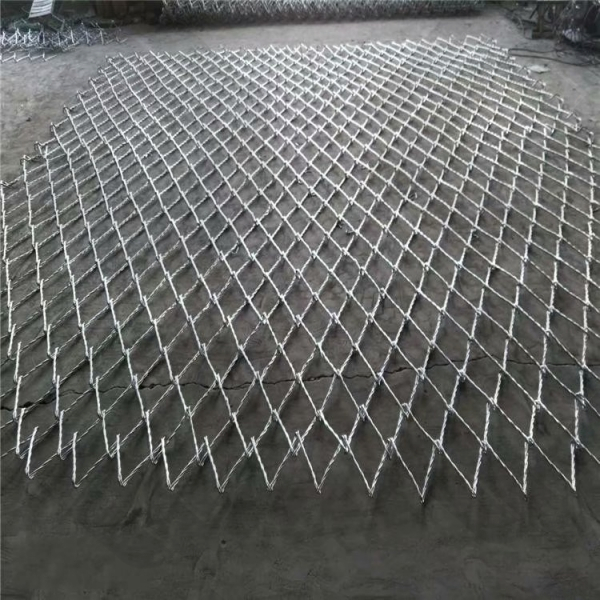

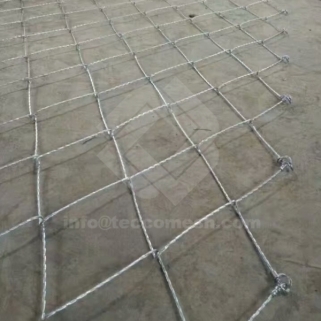

Spider Spiral Rope Mesh also known as the Spider spiral rope net, Rockfall drapes, Spider net, Spider rope net, Spiral wire rope SPIDER net, etc.

Spider Spiral Rope Mesh mainly used in GSS2A, GSR2A system, its function is similar to the GPS2 active net. The general network using 3.5X10M, bolt can be designed according to the requirements of 3-4.5M spacing, depth can be used 2-8M; Connecting bolt and system network with spider anchor plate, bolt distribution can be rectangular, plum shaped distribution, Because of the special structure of SPIDER net, the bolt can be sparse distribution of dense, basically can meet the slope at any point arrangement of bolt, the length can be short or long, the slope reinforcement mechanics index of diversity, this point is better than the traditional diamond mesh type GPS series.

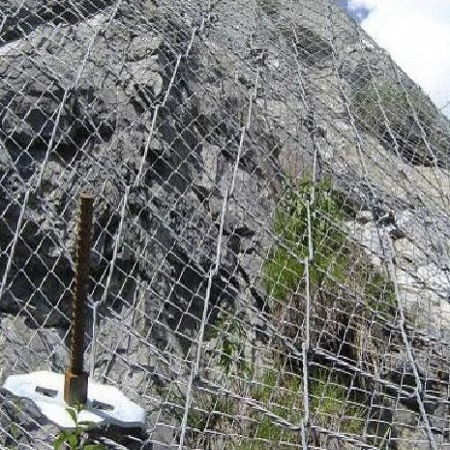

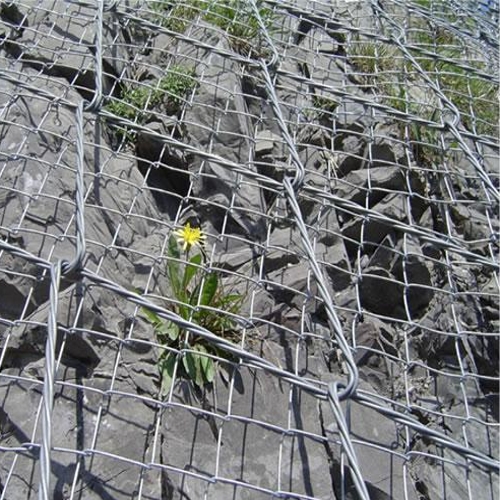

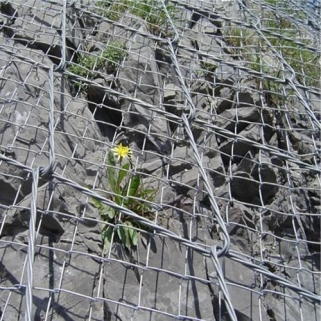

 The Spider Spiral Rope Mesh is a kind of high strength steel wire spiral mesh as the main body, a new active protection system. For high steep rock slope reinforcement,boulder and loose rock reinforcement,spider system is a kind of high quality protection product.

Normal Specification of Spider Spiral Rope Mesh

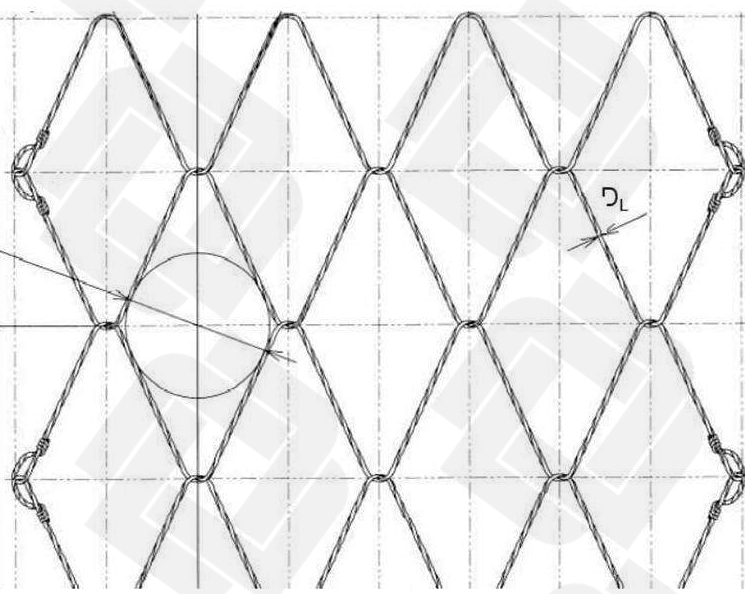

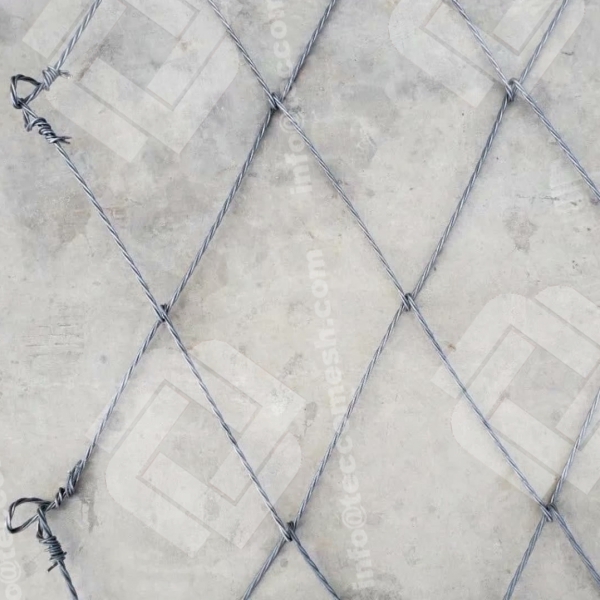

Aperture shape: diamond  Aperture Size:292 x 500mm (+/-5%)  Wire Diameter:3.0mm Strands Structure:1 x3
Monofilament intensity: Not less than 1770N/mm2 ,  Zinc mass: Not less than 150g/m2 ,   Breaking force: 195-220KN/m

Consist of Spider Spiral Rope Mesh

 *Spider net
 *High strength carbon steel wire mesh
 *Prestressed anchor/bolts

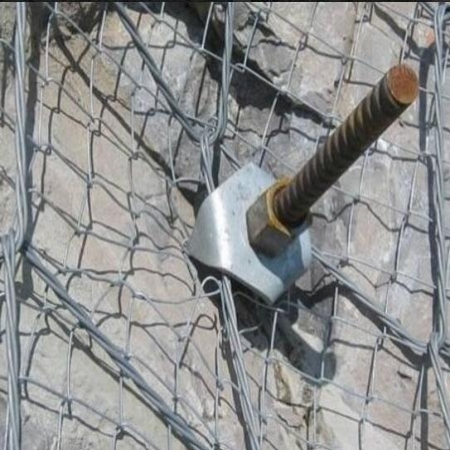

 *Special anchor backing plate

Product Feature

 *Simple structure,installing more efficient
 *New structure design theory,model and layout of anchor selection more targeted
 *Special mesh and anchor form,bring greater slope pre-pressure,more optimized system stress transfer
 * Longer anticorrosive life
 *More economic investment.
