Rockcon System is s a kind of high tensile steel wire mesh system specially designed for rockfall protection, slope stabilization and landslide protection.

Components Of Rockcon System

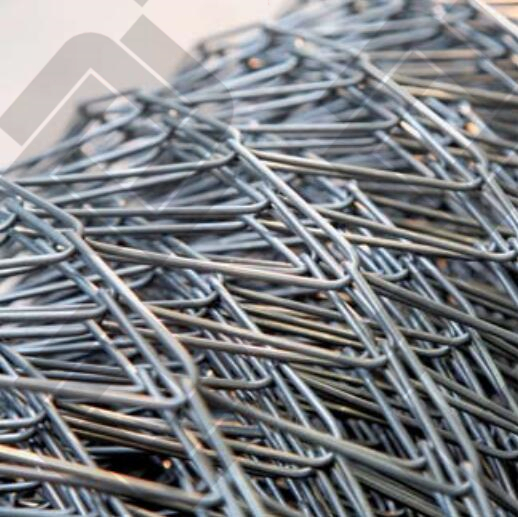

The Rockcon System consists of TECCO Mesh, anchors, and anchor bearing plate, border and suture ropes and net connection clips.

The Rockcon System is made using 3mm/4mm high-tensile steel wire. And with anchors the TECCO Mesh covers over the slope tension and firmly. The TECCO erosion blanket is firmly fixed to slopes and features a finer mesh to ensure that small rocks can be held in place in addition to large boulders.

Standard Specification of Rockcon System
Wire Diameter:3mm
Hole Inscribed circle diameter: 65mm (+/- 5%)    Mesh Size: 83*143mm
Roll Size: 3.5m x 10m/20m/30m       Mesh Ends Knotted

Standard Specification of Rockcon System
Wire diameter:4mm
Hole Inscribed circle diameter: 65mm (+/- 5%)    Mesh Size: 83*138mm
Roll Size: 3.5m x 10m/20m/30m       Mesh Ends Knotted

Anchors
Deformed steel bar anchor diameter: 25mm or 28mm
Length:2m -6m
Anchor bearing plate: 320mm x 170/180mm

Wire Rope
Border rope diameter: 12mm or 16mm
Seaming rope diameter: 8mm

Benefits
Compared with other active protection systems:
Only 60%-80% cost compare with the traditional wire rope system.
Fast and easy installation
