Tecco System G45/2

  • Tecco System G45/2
  • Tecco System G80/4
  • Tecco System G65/3
  • Tecco System
  • TECCO System G65/4
  • Tecco System G80/3
  • Tecco System G80/2
  • драпировка склонов
  • Защита от каменпада, сетка TECCO
  • Tecco slope stabilization system

Product Description

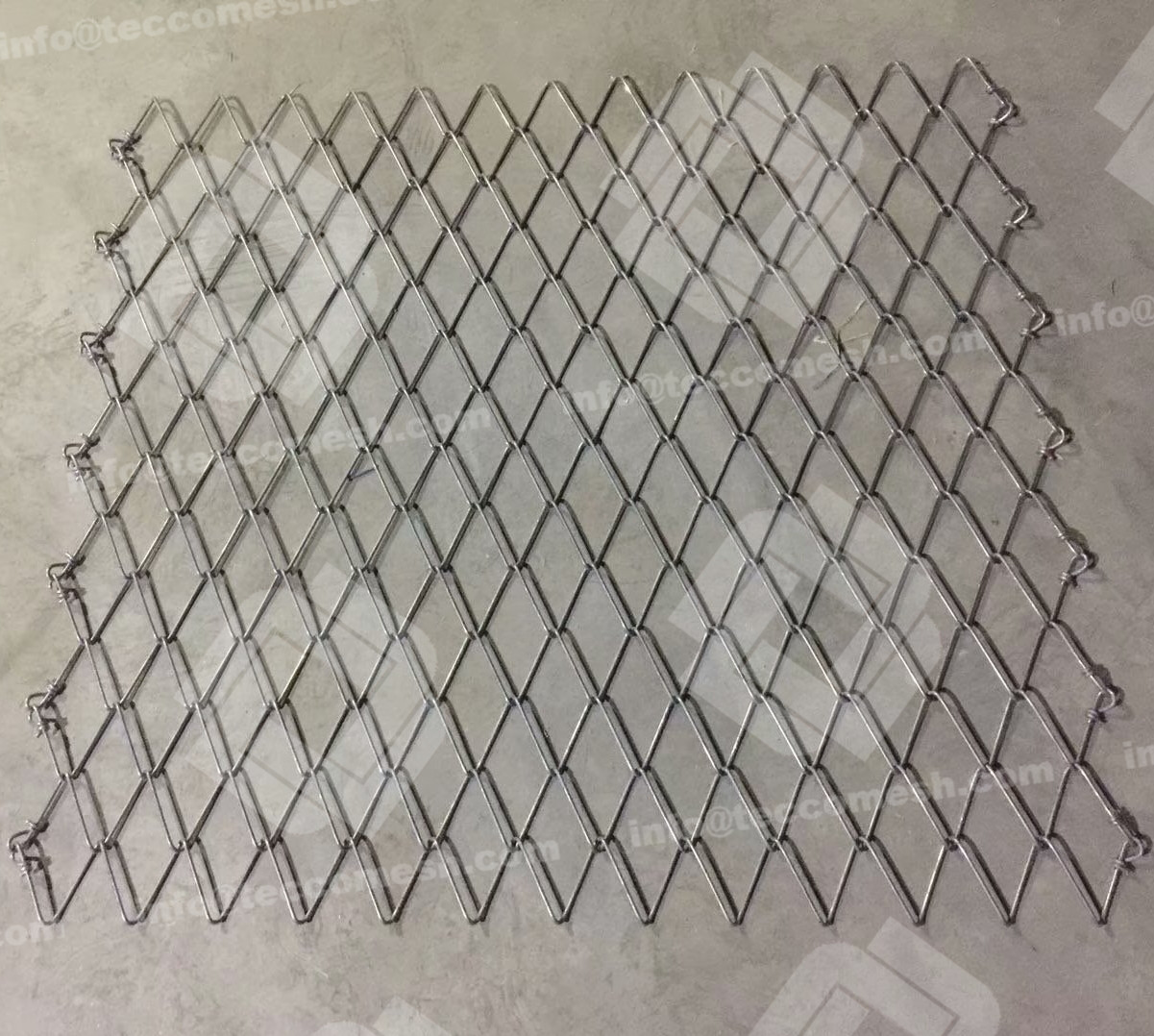

The TECCO system G45/2 consists of TECCO mesh G45/2, anchors, an anchor bearing plate, border and suture ropes and net connection elements.

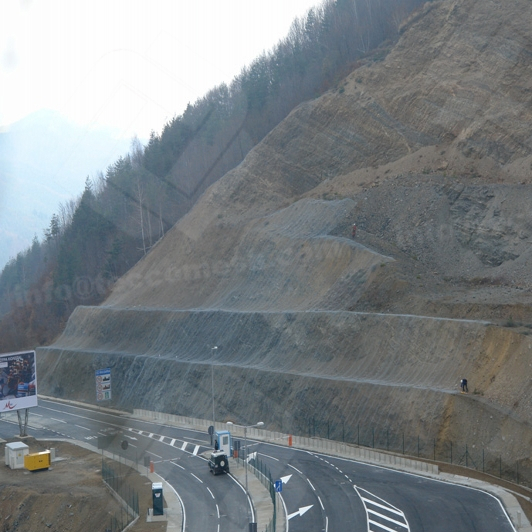

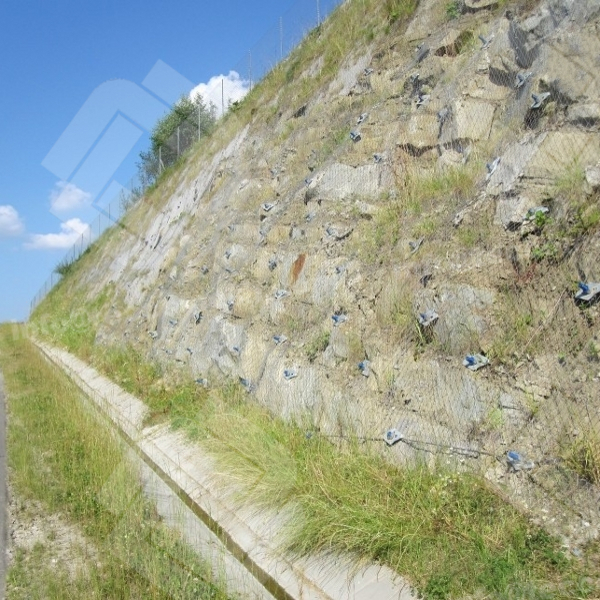

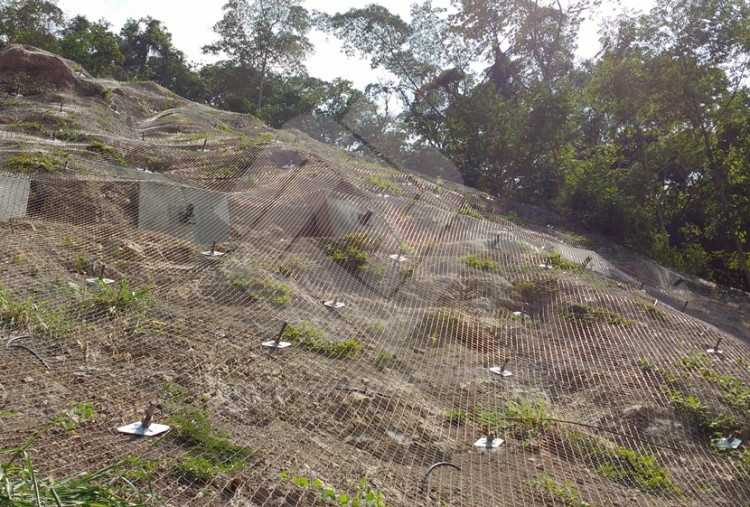

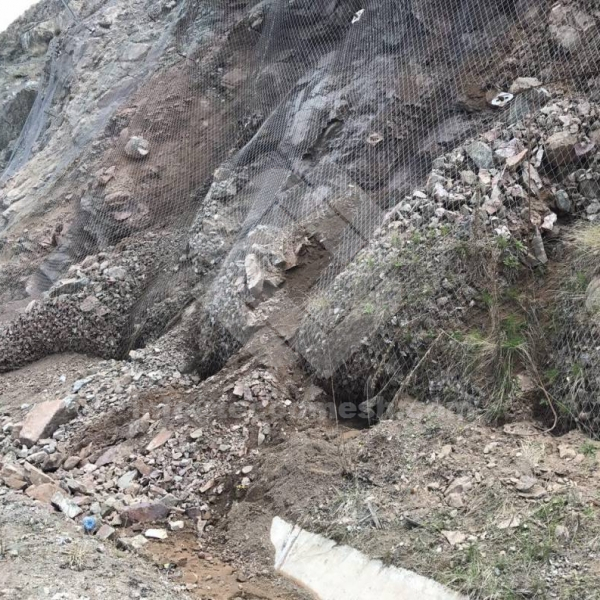

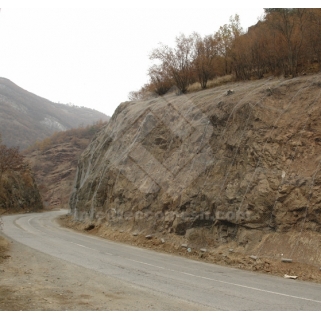

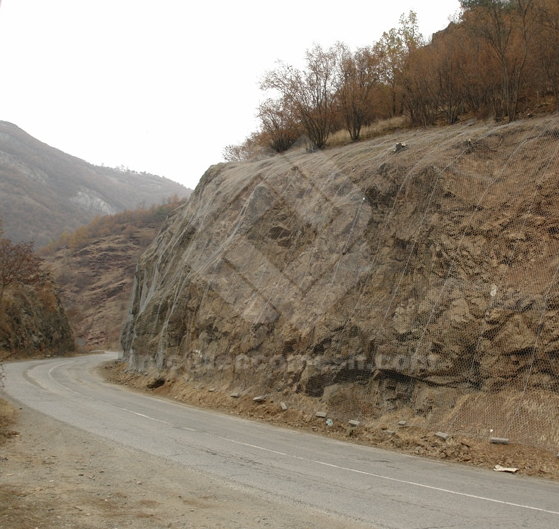

The TECCO System G45/2 is made using 2mm high-tensile steel wire. And with anchors the TECCO mesh covers over the slope tension and firmly. The TECCO erosion blanket is firmly fixed to slopes and features a finer mesh to ensure that small rocks can be held in place in addition to large boulders.


Standard Specification of TECCO System G45/2
Wire diameter:2mm

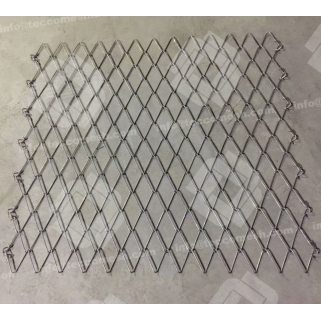

Hole Inscribed circle diameter: 45mm (+/- 5%)     Mesh Size:62*95mm
Roll Size: 3.5m x 10m/20m/30m    Mesh Ends Knotted

Deformed steel bar anchor diameter: 25mm or 28mm
Length:2m -5m
Anchor bearing plate: 320mm x 170/180mm

Border rope diameter: 12mm or 16mm
Seaming rope diameter: 8mm

Compared with other active protection systems:
Only 60%-80% cost compare with the traditional wire rope system.
Fast and easy installation

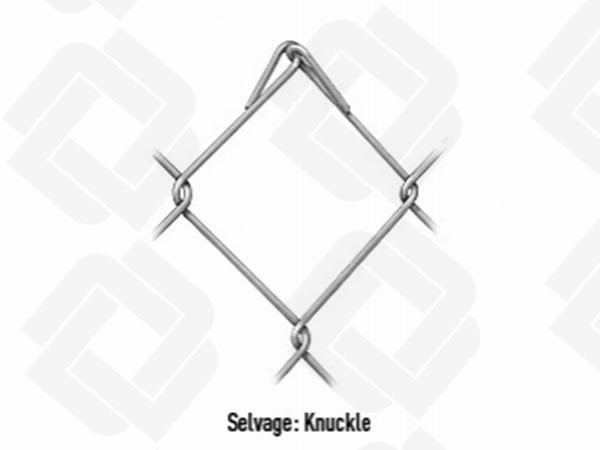

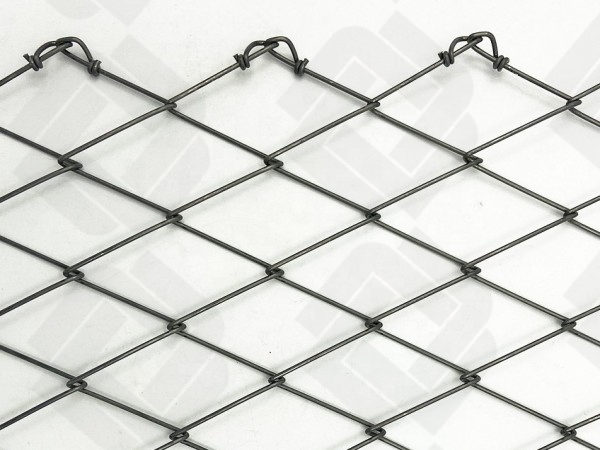

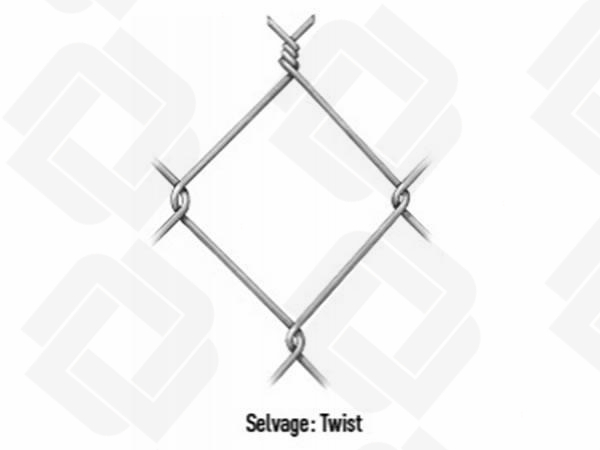

The Mesh Edgs below are available.
